 Raising the bar in high bay lighting

Durable, tough lighting

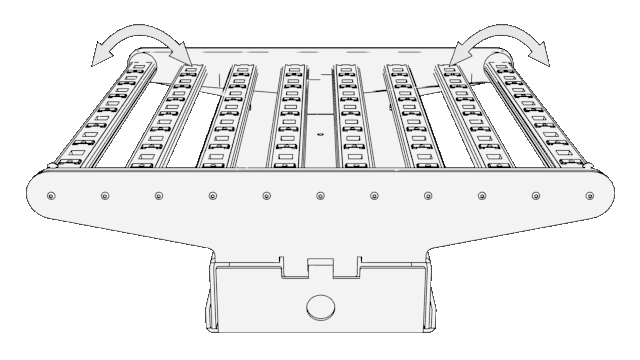

 The light engines are recessed into incredibly durable,

extruded aluminum bars.  The patented Coined Optic

directs light emitted from the LED's uniformly lighting

the targeted surface.

Outshining the competition

 The Light Engine maximizes efficiency, creating uniformity and glare control for even the most demanding lighting environments.

SPECS

Lumens:   110 Watts     150 Watts     220 Watts     300 Watts

                      12888 lm       17955 lm      25190 lm       32602 lm

CRI:   70 Min.

Color Tempertures:   40K, 50K, 57K

Ambient Operating Temp:   Min -20˚c, Max 55˚c

Housing:   5052-H32 Aluminum

Finish:   Grey Powdercoat, White Powdercoat, Black Powdercoat

Mounting:   Cable, Surface, Rigid Stem (Pendant),

Rated:   >54,000 hours at 70% Lumen Maintenance (L70)

Reflector:   30˚, 60˚, 90˚ VE Patented Coined Optic

LED Module:   Seoul Z5-M2 Highpower

Driver:   Inventronics Driver allows for 1-10V dimming,

flicker-free from 10 to 100%. Universal input voltage 120-305VAC, 50to 60Hz.

347V & 480V step down transformers also available.

Emergency Driver Back-Up:   90min Philips Bodine Driver

Approved For:   Damp Locations

Made in Palmdale, CA.

Warranty:   5-year limited warranty.  Complete warranty terms found here.

Certification:  UL Listed, CUL Listed, DLC Listed

Length  17.3"
Width  17.5"
Height  5.32"
Weight  13lbs.  (5.8kg)
Length  17.3"
Width  17.5"
Height  5.32"
Weight  14lbs.  (6.3kg)
Length  33.34"
Width  17.5"
Height  5.32"
Weight  21lbs.  (9.52kg)
Length  33.34"
Width  17.5"
Height  5.32"
Weight  23lbs.  (10.4kg)
